Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX; CU-TR
Model Number: HRD97
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T

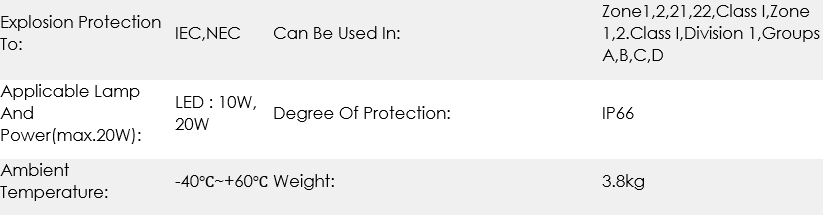

Specifications :
| Specification | Details | ||
| Global (IECEx) | IECEx CQM 22.0036X | ||
| Gas and Dust Rating | Ex db IIC T6 Gb Ex tb IIIC T80℃ Db |
||
| Europe (ATEX) | ATEX (applied for) | ||
| Gas and Dust (ATEX) | HRD97 Series Explosion Proof LED Light Fittings 10W, 20W Atex Rated Lights IP66 1 II 2 G Ex db IIC T6 Gb 1 II 2 D Ex tb IIIC T80℃ Db |
||
| Certificates | IECEx, ATEX, CU-TR | ||
| Conformity to Standards | EN, IEC | ||
| Degree of Protection | IP66 | ||
| Ambient Temperature | -40℃ to +60℃ | ||
| Material | Copper-free Aluminium Alloy, powder coated surface (yellow RAL1021) Toughened glass, stands 4J impact |
||
| Weight | 3.8 kg | ||
| Dimensions | 155 x 155 x 210 mm | ||
| Lamp Specification | Integrated LED, Multiple LED | ||
| Lamp Power | 10W, 20W | ||
| Rated Voltage | 24V AC 50/60Hz, 36V AC 50/60Hz, 100-277V AC 50/60Hz, 24V DC, 36V DC | ||
| Terminal | 3 x 1.5~4 mm² (L+N+PE) | ||
| Cable Entries | M25 x 1.5 | ||
| Downloads | HRD97 Series Explosion-proof LED Lightings (Download here) Global (IECEx): IECEx CQM 22.0036X (Download here) |
||
| Contact Information | Address: No. 555, Baoqian Road, Jiading District, Shanghai, China Zip Code: 201808 Tel: +86 21 39977076 / +86 21 39972657 Fax: +86 21 39977077 Email: gmb@warom.com |
